DuraComm HE1U-5012-BC-MU

DuraComm > Power Supplies

13.8 VDC Output @ 50 Amps Max Rack Mount Power Supply, Integrated Seamless Battery Backup, with Built In Monitoring and Control

90-264 VAC input, Short circuit / Overload / Over voltage / Over temperature protection, low voltage disconnect, battery trickle charging

Customer Rating:

Item SKU Number: 541030

Manufacturer Part Number: HE1U5012BCMU, HE1U 5012 BC MU, HE1U-5012-BC-MU

FCA point / Shipped from: USA

Manufacturer Warranty: 3 years

Download Free Materials:

DuraComm_HE1U-MU_series_brochure.pdf (683.83 KB)

DuraComm_power_supplies_application_guides.pdf (2729.33 KB)

Item Details:

DuraComm HE1U MU: Rack Mount Power Supply with Built In Monitoring and Control

Power Supply Features:

Basic

- Remote control ON / OFF
- DC-OK TTL signal
- Short circuit / Overload / Over voltage / Over temperature protection
- 750 Watt high efficiency switching power module at 12, 24, or 48 VDC output

BC Version

- Builds upon the base model with the addition of with integrated seamless battery backup
- Integrated low voltage disconnect
- Battery trickle charging with automatic revert function
- Diode isolated battery switch over

BMS Version

- Builds upon the previous models
- Integrated smart charger
- Integrated low voltage disconnect
- Selectable input voltage 110 or 220 VAC

Communication Ports:

- 10 / 100 Ethernet
- USB port for debuggin

General Features:

- Send Email alerts, SNMP traps
- On board reset button for "Hard Reset" to restore settings back to factory defaults
- On board memory storage. Micro SD Memory Card (Downloadable via web interface, as a CSV file.)

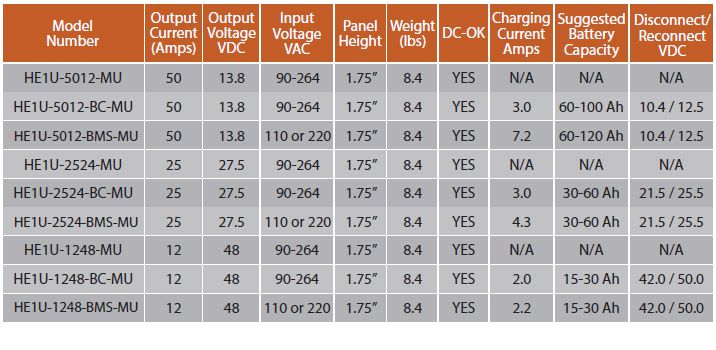

Models and Specifications:
