Maxon (TecNet) SD-125E U2

Maxon (TecNet) > Data radios UHF
SD-125 Series Synthesized RF Link Module UHF, 440-470 MHz, Programmable 1 or 5 Watts output and up to 16 channels
Operating voltage 9 to 18V DC, Programmable wide or narrow channel spacing, Time-out-timer, Cast aluminum housing with mounting holes, 9-Pin interface connector
Customer Rating:
/
Vote!
Item SKU Number:  005602
Manufacturer Part Number:  SD125E U2, SD 125E U2, SD-125E-U2
FCA point / Shipped from:  USA
Manufacturer Warranty:  1 year
 Download Free Materials:

Adobe Acrobat Reader Maxon_sd-125spec.pdf (390.39 KB)
 Item Details:

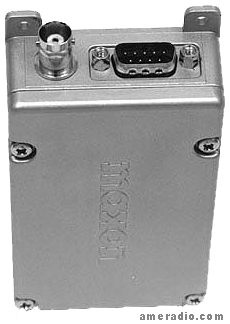

Maxon SD-125 RF Data Module

Synthesized RF data module

Features:

VHF Model SD-125V
UHF Model SD-125U

Frequency range - VHF: 148-174 MHz   UHF: 440-470 MHz
Data rates: up to 9600 baud
Channels: up to 16 (dip switch selectable)
Channel spacing: 25, 12.5 KHz (5.0 & 6.25 KHz reference steps)
Operating Temperature: -22F to +140F (-30C to +60C)
Input Voltage: 9-15V (12V nominal)
Weight: 7.7 oz (218 gr)
Body: Die-cast aluminum
RF output: 5W
RF Output Impedance: 50 Ohms
Scanning capability
DB-9 connector
ISO 9001 compliant



 Manufacturer's Catalogs and Guides:

These files contain information about the available products from the manufacturer. If you need something that is not on our website, please contact us. We will help you purchase the desired product at a low price.

Maxon America Catalog
Q1 2025 Product Catalog

Maxon America's NEW Q1 2025 Product Catalog (PDF High Quality Version)
Maxon America Guide
Q4 2025 Products and Accessories Guide

Maxon America's LMR, DMR, JobSite, Data Radios & Helmet Communication Equipment and Accessories


Maxon logoMaxon data telemetery two way radio utilize the latest technology in its design and manufacturing. Ideal for any system design where high performance RF specifications, fast TX/RX attack times, and compact size are a requirement. High specifications permit integration into systems demanding the utmost performance in congested frequency environments.

Maxon America, Inc. is a supplier of two-way and data radio products for North and South America. Formerly known as TecNet International, Inc.
