DuraComm EH-48-5N-MU

Indoor / Outdoor Environmentally Hardened Wall Mount Power Supply (55.2V DC / 5A) with Battery Back-Up, Trickle Charger, Low Voltage Disconnect, Remote Montoring and Control via Ethernet
90-264 VAC input, LED indication for DC out and AC fail, on board memory storage, internal battery included
Heavy / Bulky Item
Customer Rating:
/
Vote!
Item SKU Number:  541020
Manufacturer Part Number:  EH485NMU, EH 48 5N MU, EH-48-5N-MU
FCA point / Shipped from:  USA
 Download Free Materials:

Adobe Acrobat Reader DuraComm_EH-MU_series_brochure.pdf (674.85 KB)

Adobe Acrobat Reader DuraComm_power_supplies_application_guides.pdf (2729.33 KB)
 Item Details:


DuraComm EH MU: Environmentally Hardened with Built In Monitoring and Control

The Environmentally Hardened is a weatherproof power supply with Low Voltage Disconnect and Battery Back-up, housed in a fiberglass NEMA 4X enclosure, which is dust-proof and moisture-resident. A SiteCentri© Remote Monitoring and Control Unit is included which allows monitoring of PS current, PS Voltage, Battery Voltage, Output Voltage and Load 1 voltage, as well as temperature and AC Line voltage. By using a standard internet browser you can monitor all of the inputs, and configure to send emails when the Analog Voltages, DC-OK or other alarms, or temperature are out of limits. It can log readings to an internal micro-SD card as well, which are time-stamped with a real-time clock. SNMP traps can also be configured.


Power Supply Features:

- Indoor or outdoor, wall-mount
- 110 VAC or 220 VAC input (factory set)
- Low voltage disconnect for 12 VDC, 24 VDC or 48 VDC
- AC input or power supply fail, relay contacts
- LED indication for DC out and AC fail
- AC input breakers included
- Output with 5 fuse distribution block
- Internal battery included


Communication Ports:

- 10 / 100 Ethernet
- USB port for debuggin


General Features:

- Send Email alerts, SNMP traps
- On board reset button for "Hard Reset" to restore settings back to factory defaults
- On board memory storage. Micro SD Memory Card (Downloadable via web interface, as a CSV file.)

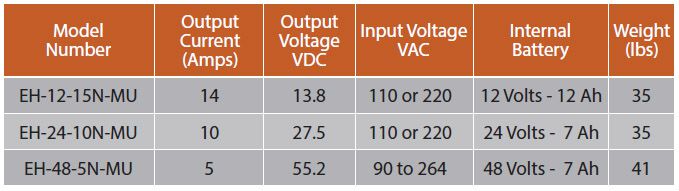

Models and Specifications:
